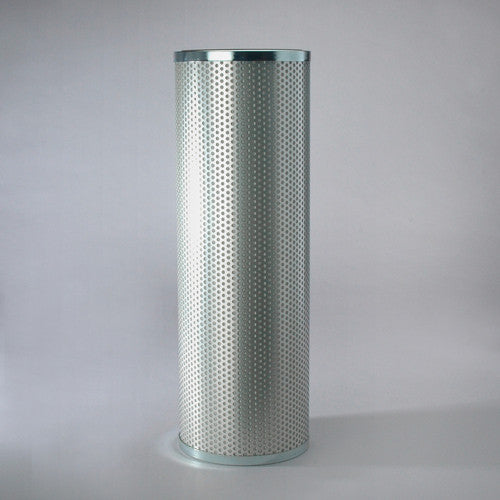

P566189 | Donaldson | OFS # 97-571727

Performance Data
Micron Rating: 6.00 ABSOLUTE

Beta Rating: BX = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 225 MAX

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 7.44 IN (188.98 MM)

Outer Diameter, Bottom: 7.44 IN (188.98 MM)

Inner Diameter, Top: 4.85 IN (123.19 MM)

Inner Diameter, Bottom:

Length: 22.04 IN (559.82 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: MICROGLASS

Filter Area: SQ IN"

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
