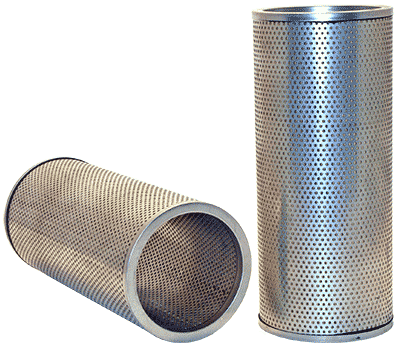

P556220 | Donaldson | OFS # 97-28-1961

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.50 IN (165.10 MM)

Outer Diameter, Bottom: 6.50 IN (165.10 MM)

Inner Diameter, Top: 5.50 IN (139.70 MM)

Inner Diameter, Bottom: 5.50 IN (139.70 MM)

Length: 15.03 IN (381.76 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 16.40 LB (7.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
