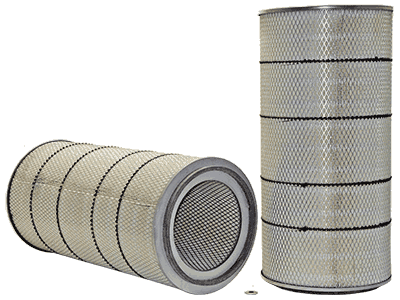

Torit | P149554 Gas Turbine | OFS# 97-21-0006

Performance Data
Micron Rating:  0.00 ABSOLUTE

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  150 F

Direction of Flow:  OUTSIDE-IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  12.75 IN   (323.85 MM)

Outer Diameter, Bottom:  12.75 IN   (323.85 MM)

Inner Diameter, Top:  8.38 IN   (212.85 MM)

Inner Diameter, Bottom:  1.18 IN   (29.97 MM)

Length:  26.00 IN   (660.40 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NEOPRENE

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  80/20 BLEND

Filter Area:  226 SQ.FT.

Plating:  ELECTRO-GALVANIZED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END/BH

Packaging Specifications
Number per Carton:  1

Carton Weight:  16.00 LB   (7.26 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
