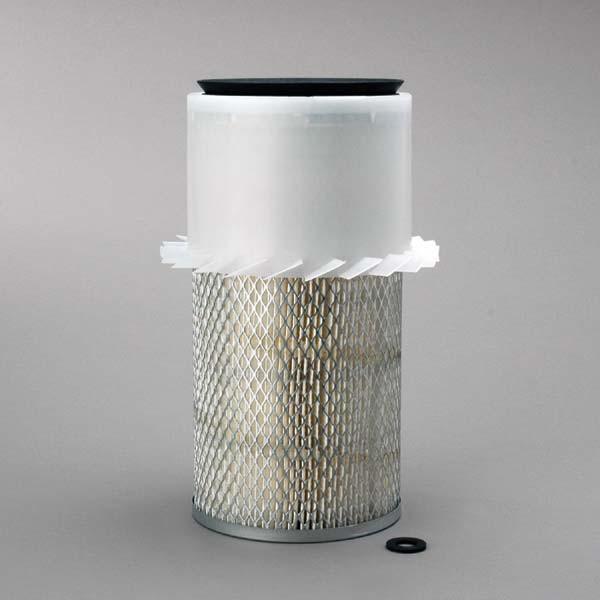

P107475 | Donaldson | OFS # 97-22-0512

Shipping Availability: Usually Ships In 24 - 48 Hours

Performance Data
Micron Rating: 15.00 Nominal

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Change-out Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.81 Inches (198.37 MM)

Outer Diameter, Bottom: 6.09 Inches (154.69 MM)

Inner Diameter, Top: 0.65 Inches (16.51 MM)

Inner Diameter, Bottom: 3.50 Inches (88.90 MM)

Length: 12.25 Inches (311.15 MM)

Thread: None

Physical Specifications
Handle: None

Seal Material: Buna-N

Type of Adhesive: Plastisol

Type of End-Cap: Plated Steel

Center Tube: Plated Steel

Type of Media: Paper

Filter Area: SQ.IN.

Plating: None

Outer Jacket: Yes - Metal

Configuration: Single Open End/BH

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)
