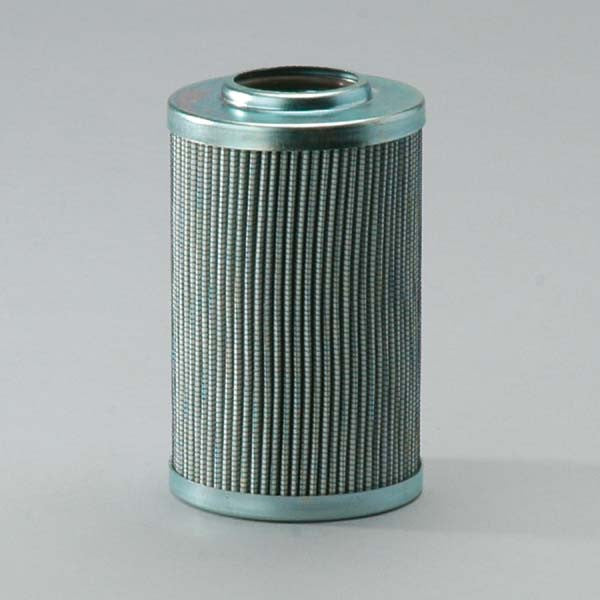

MMT14340 | Method Machine | OFS# 97-05-1081

PLEATED MICROGLASS ELEMENT

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:  B12=200

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  2.69 IN   (68.33 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  1.44 IN   (36.58 MM)

Inner Diameter, Bottom:

Length:  14.00 IN   (355.60 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton  1

Carton Weight  1.80 LB  (0.82 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
