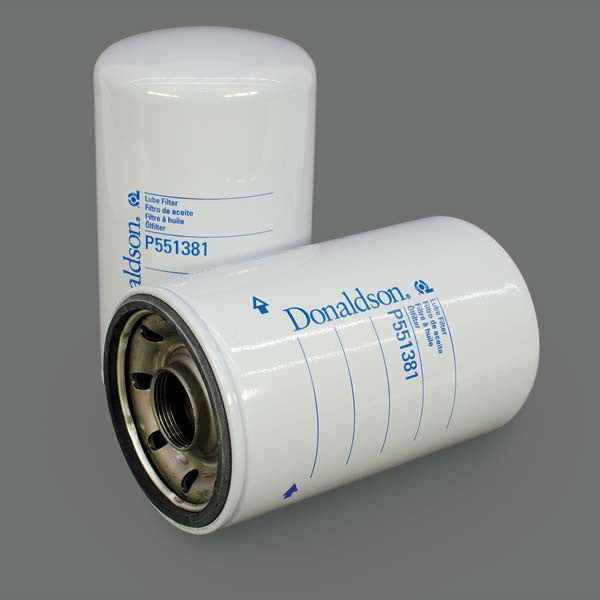

Spin-On Filter Element

Performance Data
Micron Rating: 12.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSI

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 250 PSI BURST PRESSURE; 25 MICRON ABSOLUTE

Dimensional Specifications
Outer Diameter, Top: 4.66 IN (118.36 MM)

Outer Diameter, Bottom: 4.66 IN (118.36 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 8.09 IN (205.49 MM)

Thread: 1-1/2-12

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 15.00 LB (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
