HHC01353 | IKRON | OFS # 97-39-1360

in stock

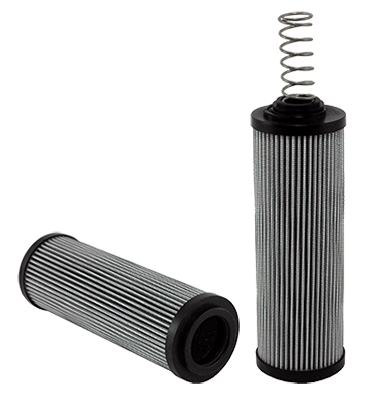

Glass Hydraulic Element

Performance Data
Micron Rating:  10.00 ABSOLUTE

Beta Rating:  B10=200

Collapse Pressure Rating:  250

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top:  2.75 IN   (69.85 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  1.62 IN   (41.15 MM)

Inner Diameter, Bottom:

Length:  8.06 IN   (204.72 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  CORROSION RESISTANT STEEL

Center Tube:  CORROSIN RESISTANT STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN"

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
