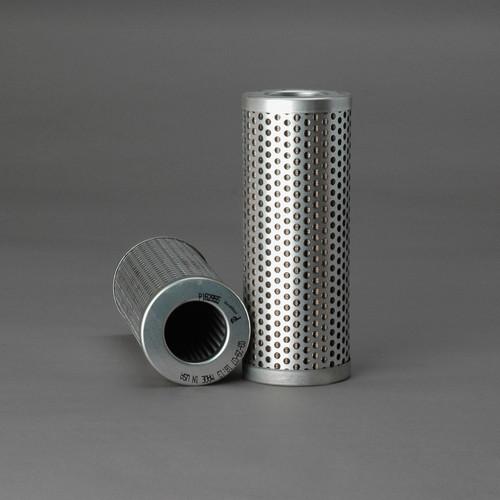

HFR-86447 | FLEETRITE | OFS # 97-15-2206

Performance Data
Micron Rating:  23.00

Beta Rating Ratio: 2/20=7/18

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.10 IN   (78.74 MM)

Outer Diameter, Bottom:  3.10 IN   (78.74 MM)

Inner Diameter, Top:  1.74 IN   (44.20 MM)

Inner Diameter, Bottom:  1.74 IN   (44.20 MM)

Length:  8.00 IN   (203.20 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Filter Style:  CARTRIDGE HYDRAULIC METAL CANISTER FILTER

Type of Filter:  FULL FLOW

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media: CELLULOSE

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: 1.40 LB  (0.64 KG)

Gross Length 3.6 IN

Gross Width 3.6 IN

Gross Height 8.9 IN

Gross Volume 0.0668 FT3

Principle Application: Various Hydraulic Equipment & Industrial Applications.

COMPETITOR COMPARISON

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
