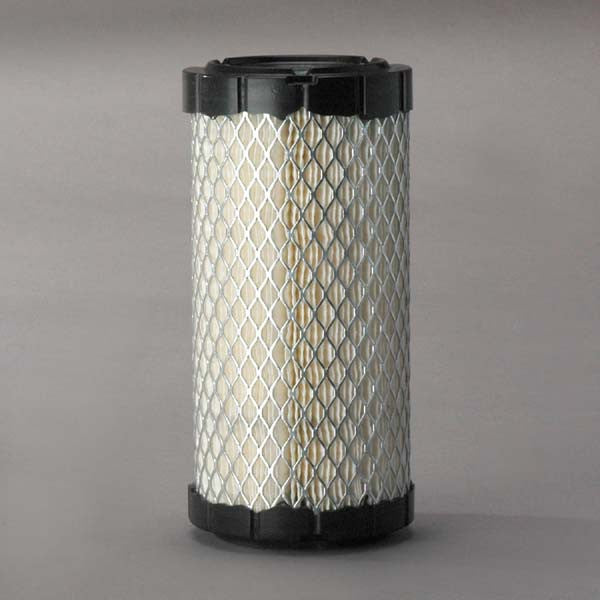

G6635 | Luber-Finer | OFS # 97-28-4535
Performance Data
Micron Rating: 0.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.50 IN (88.90 MM)
Outer Diameter, Bottom: 3.50 IN (88.90 MM)
Inner Diameter, Top: 1.75 IN (44.45 MM)
Inner Diameter, Bottom:
Length: 7.34 IN (186.44 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive: N/A
Type of Endcap: MOLDED
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: N/A
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 0.70 LB (0.32 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
