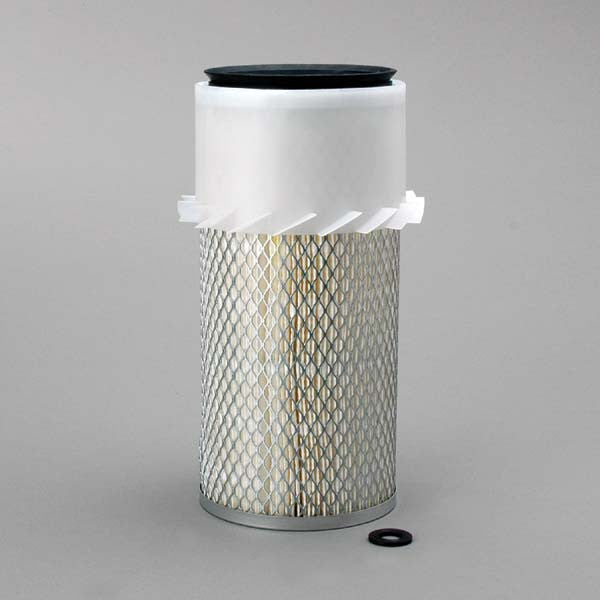

FMA253 | Filter Mex | OFS # 97-22-1120
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.34 IN (161.04 MM)
Outer Diameter, Bottom: 5.24 IN (133.10 MM)
Inner Diameter, Top: 2.71 IN (68.83 MM)
Inner Diameter, Bottom: 0.67 IN (17.02 MM)
Length: 11.43 IN (290.32 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE/BOLT/FIN
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.70 LB (0.77 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
