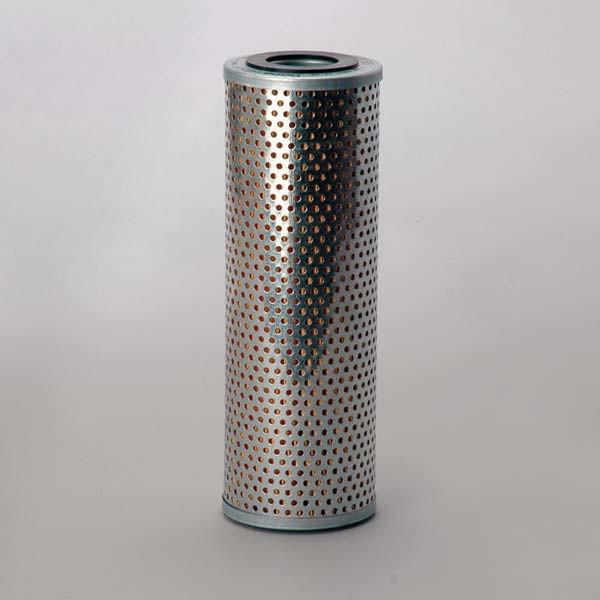

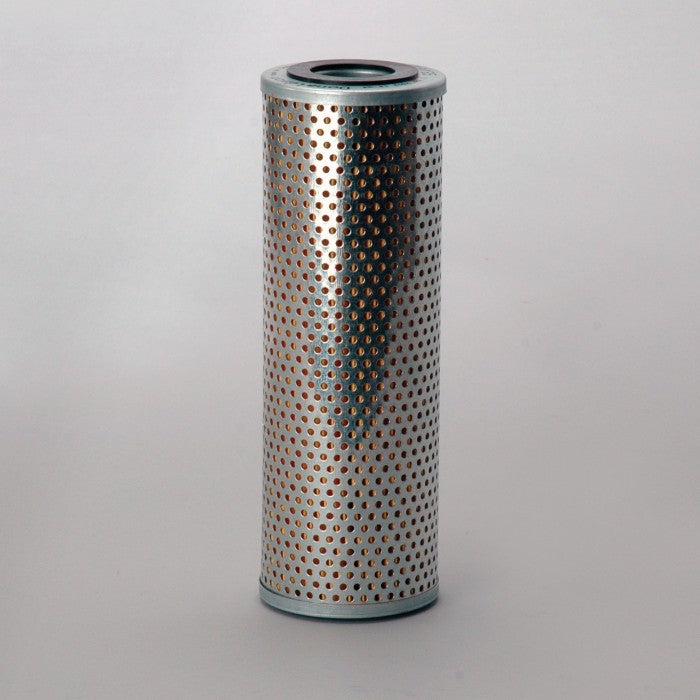

F0HZ3C602A | Ford | Pleated Paper Element | OFS # 97-01-0989

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.06 IN   (77.72 MM)

Outer Diameter, Bottom:  3.06 IN   (77.72 MM)

Inner Diameter, Top:  1.50 IN   (38.10 MM)

Inner Diameter, Bottom:  1.50 IN   (38.10 MM)

Length:  8.94 IN   (227.08 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - PAPER

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  8.90 LB   (4.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
