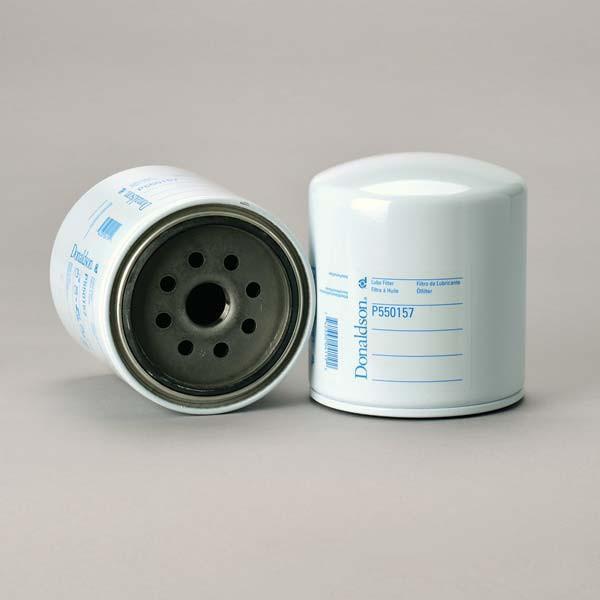

E0NN6714AA | Ford | Lube Element | OFS # 97-28-0193

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  BY-PASS VALVE = 20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.35 IN   (135.89 MM)

Outer Diameter, Bottom:  5.35 IN   (135.89 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  6.00 IN   (152.40 MM)

Thread:  1 1/8-16 UN2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  21.90 LB   (9.93 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
