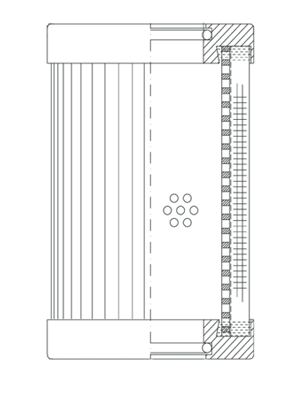

D95A01GAV | WIX | Hydraulic Elementr | OFS # 97-35-5447

Lead Time: Please Call

Performance Data
Micron Rating: 1.00 ABSOLUTE

Beta Rating: B 1 = 200

Collapse Pressure Rating:

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 3.89 IN (98.81 MM)

Outer Diameter, Bottom: 3.89 IN (98.81 MM)

Inner Diameter, Top: 1.65 IN (41.91 MM)

Inner Diameter, Bottom:

Length: 9.25 IN (234.95 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: MICROGLASS

Filter Area:

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.80 LB (0.82 KG)
