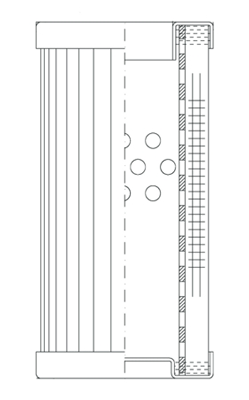

D61B20DB | WIX | Hydraulic Filter Element | OFS # 97-39-6446

Lead Time: Please Call

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE-IN

Dimensional Specifications
Outer Diameter, Top: 3.28 IN (83.31 MM)

Outer Diameter, Bottom: 3.28 IN (83.31 MM)

Inner Diameter, Top: 1.80 IN (45.72 MM)

Inner Diameter, Bottom:

Length: 5.59 IN (141.99 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: N/A

Type of Adhesive:

Type of Endcap: METAL

Center Tube:

Type of Media: PAPER

Filter Area:

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
