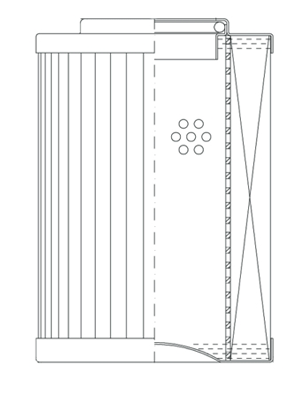

D45B25SV | WIX | Hydraulic Elements | OFS # 97-32-4352

Lead Time: Please Call

Performance Data
Micron Rating: 25.00

Beta Rating:

Collapse Pressure Rating: 435 PSID

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE-->IN

Dimensional Specifications
Outer Diameter, Top: 3.60 IN (91.44 MM)

Outer Diameter, Bottom: 3.60 IN (91.44 MM)

Inner Diameter, Top: 1.90 IN (48.26 MM)

Inner Diameter, Bottom:

Length: 13.00 IN (330.20 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: STAINLESS MESH

Filter Area: 1028 SQ IN

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.20 LB (1.00 KG)
