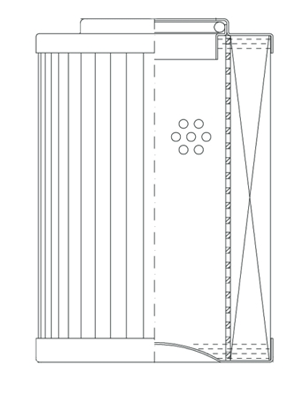

D28B10GAV | WIX | Hydraulic Elements | OFS # 97-32-4356

Lead Time: Please Call

Performance Data
Micron Rating: 10.00

Beta Rating:

Collapse Pressure Rating: 363 PSI

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE-->IN

Dimensional Specifications
Outer Diameter, Top: 2.18 IN (55.37 MM)

Outer Diameter, Bottom: 2.18 IN (55.37 MM)

Inner Diameter, Top: 0.75 IN (19.05 MM)

Inner Diameter, Bottom:

Length: 2.62 IN (66.55 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: MICROGLASS

Filter Area: 60 SQ IN

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
