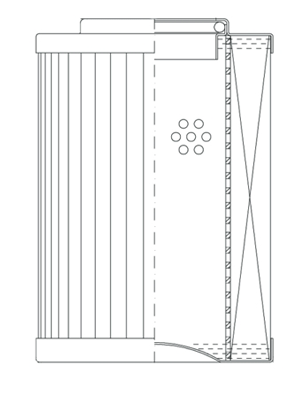

D04A10GAV | WIX | Hydraulic Element | OFS # 97-35-5813

Lead Time: Please Call

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10 = 200

Collapse Pressure Rating:

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 1.79 IN (45.47 MM)

Outer Diameter, Bottom: 1.79 IN (45.47 MM)

Inner Diameter, Top: 0.81 IN (20.57 MM)

Inner Diameter, Bottom:

Length: 7.80 IN (198.12 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: STEEL

Center Tube:

Type of Media: MICROGLASS

Filter Area:

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
