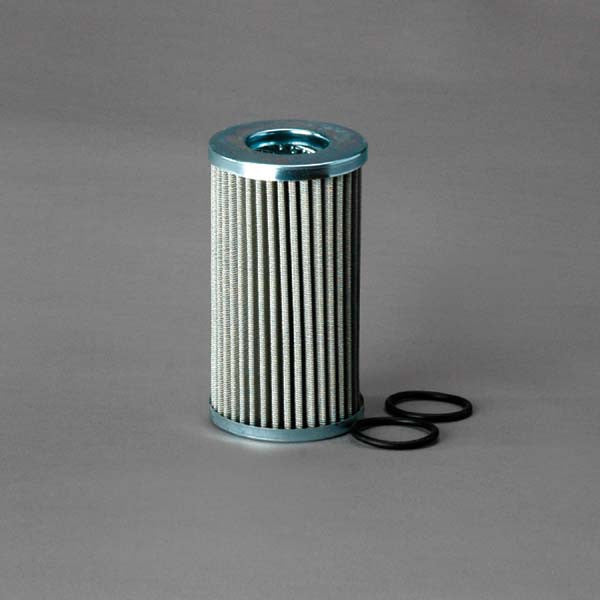

PLEATED WIRE ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 90.00 NOMINAL

Beta Rating: B90 =200

Collapse Pressure Rating: 250 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID

Dimensional Specifications
Outer Diameter, Top: 2.76 IN (70.10 MM)

Outer Diameter, Bottom: 2.76 IN (70.10 MM)

Inner Diameter, Top: 1.30 IN (33.02 MM)

Inner Diameter, Bottom: 1.30 IN (33.02 MM)

Length: 5.20 IN (132.08 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: 304 SS WIRE

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
