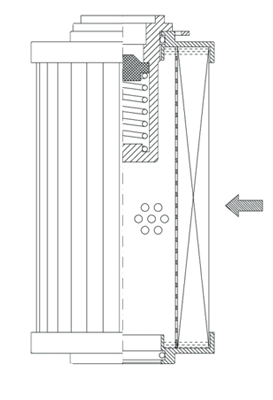

Omt | CR65-20 | Pleated Paper Element | OFS # 97-01-3356

MINIMUM ORDER AMOUNT: 2

1-2 WEEK LEAD TIME

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:  44 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.76 IN   (70.10 MM)

Outer Diameter, Bottom:  2.76 IN   (70.10 MM)

Inner Diameter, Top:  1.16 IN   (29.46 MM)

Inner Diameter, Bottom:

Length:  3.35 IN   (85.09 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  154 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
