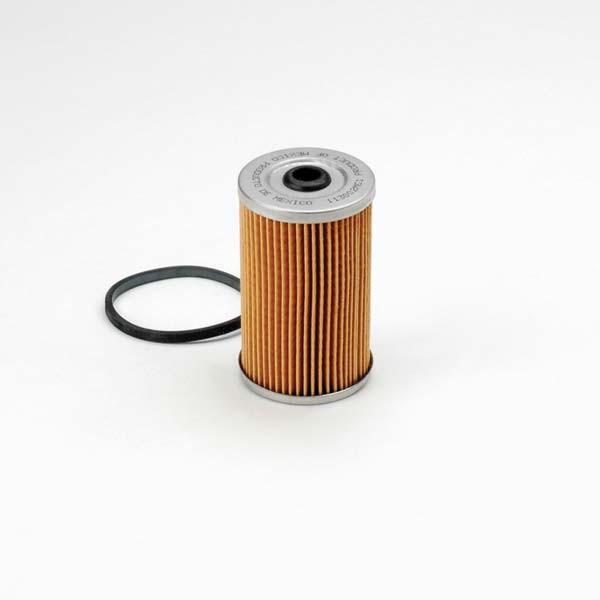

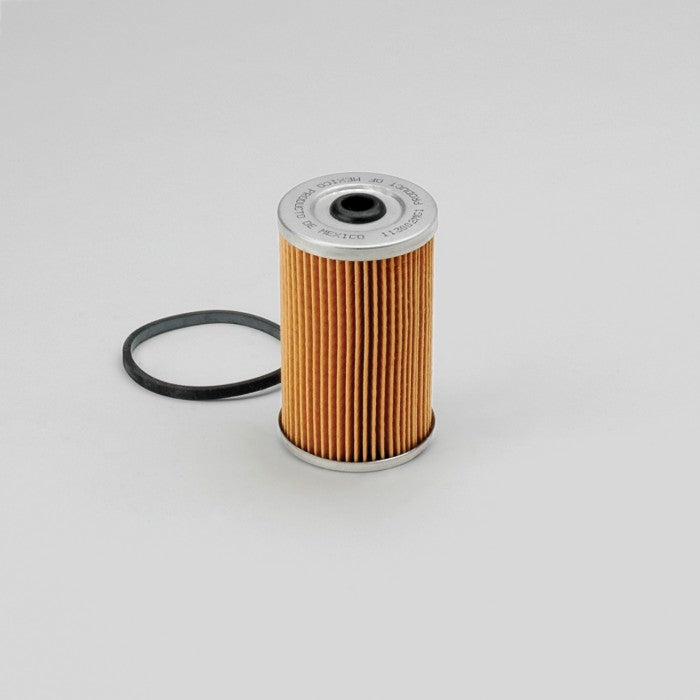

C5AE9176A | Ford | Pleated Paper Element | OFS # 97-01-0703

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  0.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.08 IN   (52.83 MM)

Outer Diameter, Bottom:  2.08 IN   (52.83 MM)

Inner Diameter, Top:  0.41 IN   (10.41 MM)

Inner Diameter, Bottom:

Length:  3.48 IN   (88.39 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  0.20 LB   (0.09 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
