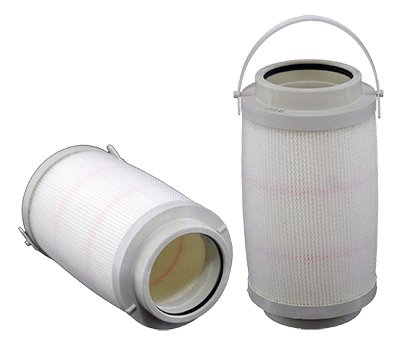

C47A12GV | WIX | Filter Element | OFS # 97-40-0168

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 248 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 3.82 IN (97.03 MM)

Outer Diameter, Bottom: 3.82 IN (97.03 MM)

Inner Diameter, Top: 2.52 IN (64.01 MM)

Inner Diameter, Bottom: 2.52 IN (64.01 MM)

Length: 6.02 IN (152.91 MM)

Thread:

Physical Specifications
Handle: YES

Seal Material: VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: MICROGLASS

Filter Area: 95 SQ IN

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
