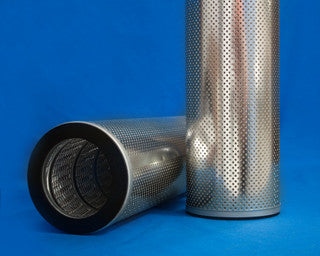

BB10F - SCHROEDER - OFS # 97-01-0094

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.00 IN (127.00 MM)

Outer Diameter, Bottom: 5.00 IN (127.00 MM)

Inner Diameter, Top: 3.50 IN (88.90 MM)

Inner Diameter, Bottom: 3.50 IN (88.90 MM)

Length: 18.30 IN (464.82 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 21 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.00 LB (2.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
