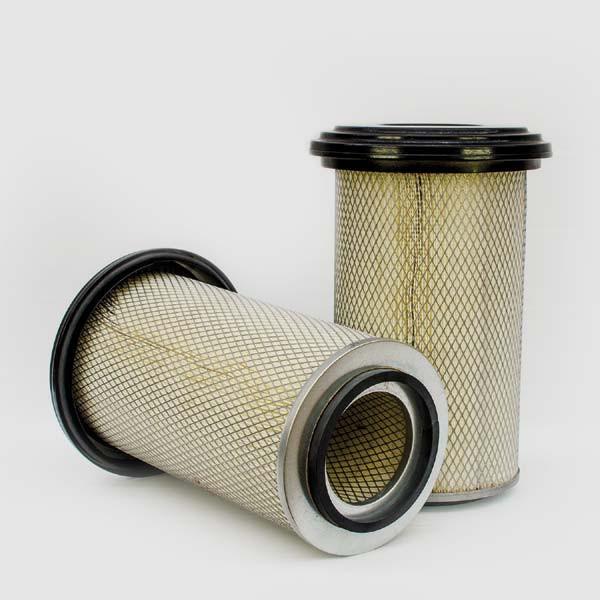

A830X9601CCA | Ford | OFS # 97-22-0614

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  300 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  7.81 IN   (198.37 MM)

Outer Diameter, Bottom:  7.81 IN   (198.37 MM)

Inner Diameter, Top:  4.09 IN   (103.89 MM)

Inner Diameter, Bottom:  0.34 IN   (8.64 MM)

Length:  14.75 IN   (374.65 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.00 LB   (2.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
