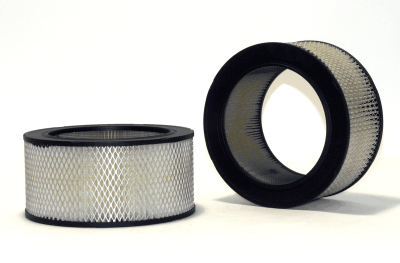

A76 | WIX | OFS # 97-22-0777

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 8.27 IN (210.06 MM)

Outer Diameter, Bottom: 8.27 IN (210.06 MM)

Inner Diameter, Top: 5.88 IN (149.35 MM)

Inner Diameter, Bottom: 5.88 IN (149.35 MM)

Length: 4.04 IN (102.62 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 8.00 LB (3.63 KG)

Intake Air Filter Element
