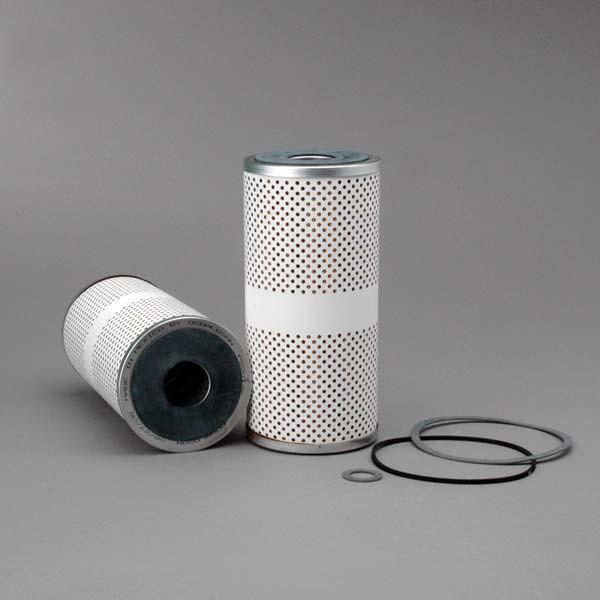

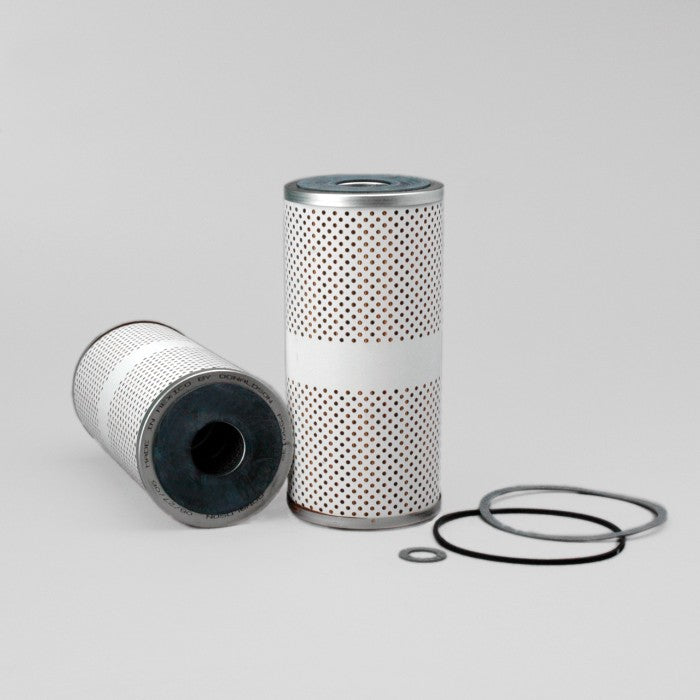

A730X6731J3A | Ford | Pleated Paper Element | OFS # 97-28-0185

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00

Beta Rating:  N.A.

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.51 IN   (114.55 MM)

Outer Diameter, Bottom:  4.51 IN   (114.55 MM)

Inner Diameter, Top:  1.44 IN   (36.58 MM)

Inner Diameter, Bottom:  1.44 IN   (36.58 MM)

Length:  8.91 IN   (226.31 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  POLYVINYLCHLORIDE

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  14.20 LB   (6.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
