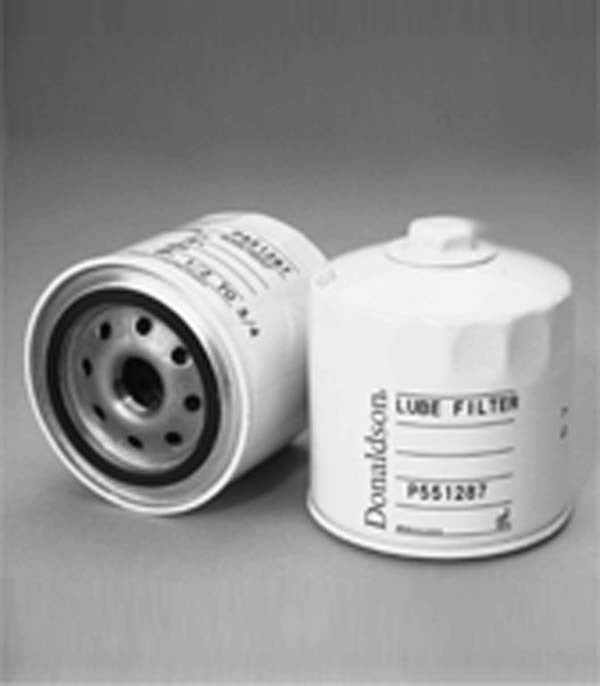

SPIN-ON ELEMENT Spin-On Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  20.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.71 IN   (94.23 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.18 IN   (106.17 MM)

Thread:  7/8-14 UNF-2B

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN SPIN-ON

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.10 LB   (0.50 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
