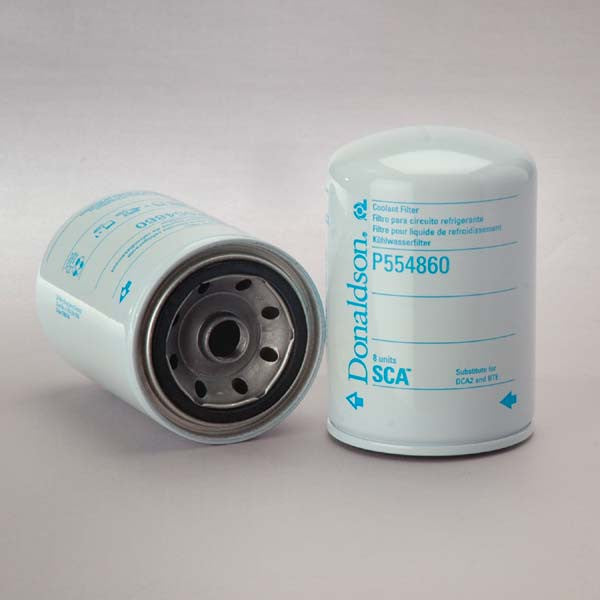

Spin-On Filter Element

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 30.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.67 IN (93.22 MM)

Outer Diameter, Bottom: 3.67 IN (93.22 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.41 IN (137.41 MM)

Thread: 3/4-20

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER/BTE

Filter Area: SQ.IN.

Plating: ELECTROTIN

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 17.00 LB (7.71 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
