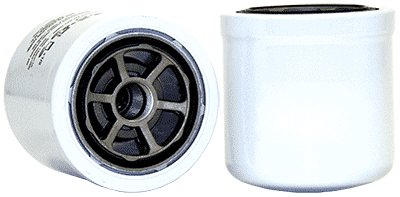

557104 | WIX | Hydraulic Element | OFS # 97-28-2134

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating: N/A BPV 53.66

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.95 IN (100.33 MM)

Outer Diameter, Bottom: 3.95 IN (100.33 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.95 IN (100.33 MM)

Thread: 7/8-14 UNF2B

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN SPIN ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 21.00 LB (9.53 KG)
