546372 | WIX | OFS # 97-22-4162

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 5.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.19 IN (131.83 MM)

Outer Diameter, Bottom: 5.19 IN (131.83 MM)

Inner Diameter, Top: 0.66 IN (16.76 MM)

Inner Diameter, Bottom: 2.56 IN (65.02 MM)

Length: 11.50 IN (292.10 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight:

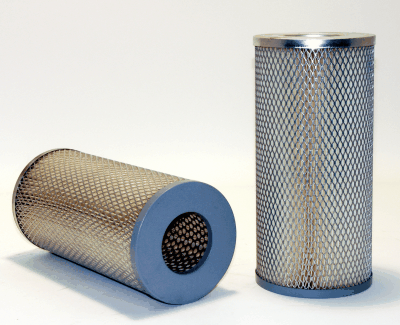

Intake Air Filter Element
