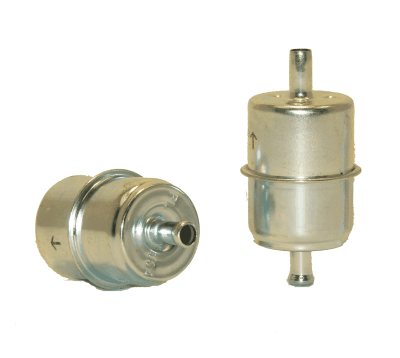

546311 | WIX | OFS # 97-28-1741

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 5.00

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: GASKET ON BOTH ENDS

Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)

Outer Diameter, Bottom: 6.00 IN (152.40 MM)

Inner Diameter, Top: 3.50 IN (88.90 MM)

Inner Diameter, Bottom: 3.50 IN (88.90 MM)

Length: 8.75 IN (222.25 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: CARBON STEEL

Center Tube: CARBON STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
