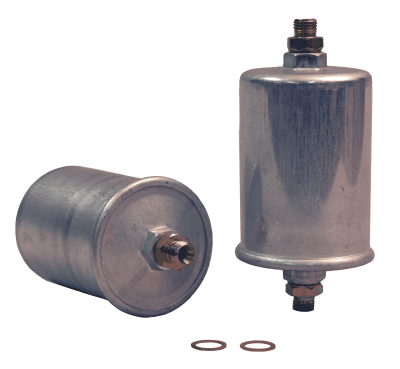

542910 | WIX | OFS # 97-22-0518

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.00 IN (228.60 MM)

Outer Diameter, Bottom: 9.00 IN (228.60 MM)

Inner Diameter, Top: 4.30 IN (109.22 MM)

Inner Diameter, Bottom: 4.30 IN (109.22 MM)

Length: 10.00 IN (254.00 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: N/A

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.00 LB (1.81 KG)
