Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 0.00

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.75 IN (247.65 MM)

Outer Diameter, Bottom: 9.75 IN (247.65 MM)

Inner Diameter, Top: 7.28 IN (184.91 MM)

Inner Diameter, Bottom: 7.28 IN (184.91 MM)

Length: 6.00 IN (152.40 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: N/A

Type of Endcap: MOLDED PLASTISOL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)

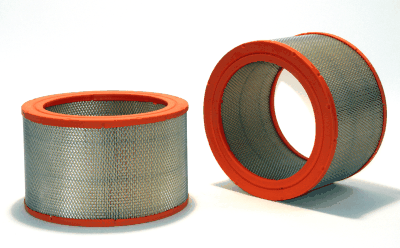

Intake Air Filter Element
