Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: PREFILTER OUTER WRAP

Dimensional Specifications
Outer Diameter, Top: 4.38 IN (111.25 MM)

Outer Diameter, Bottom: 4.38 IN (111.25 MM)

Inner Diameter, Top: 3.00 IN (76.20 MM)

Inner Diameter, Bottom: 3.00 IN (76.20 MM)

Length: 4.75 IN (120.65 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLASTISOL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - SPONGE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)

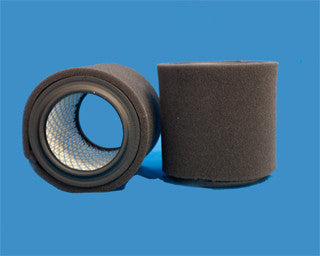

Intake Air Filter Element
