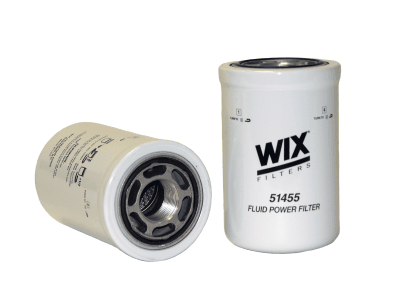

51455 | WIX | Filter Element | OFS # 97-28-0985

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.95 IN (100.33 MM)

Outer Diameter, Bottom: 3.95 IN (100.33 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.05 IN (153.67 MM)

Thread: 1-3/8-12 UNF2

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN SPIN ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.30 LB (1.04 KG)
