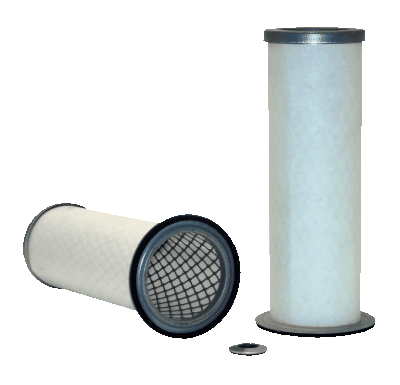

42478 | WIX | OFS # 97-22-1517

Lead Time: Please Call

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.13 IN (104.90 MM)

Outer Diameter, Bottom: 3.35 IN (85.09 MM)

Inner Diameter, Top: 2.95 IN (74.93 MM)

Inner Diameter, Bottom: 0.67 IN (17.02 MM)

Length: 9.98 IN (253.49 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)
