42221 | WIX | OFS # 97-22-0406

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.06 IN (153.92 MM)

Outer Diameter, Bottom: 6.06 IN (153.92 MM)

Inner Diameter, Top: 4.56 IN (115.82 MM)

Inner Diameter, Bottom: 4.56 IN (115.82 MM)

Length: 3.85 IN (97.79 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)

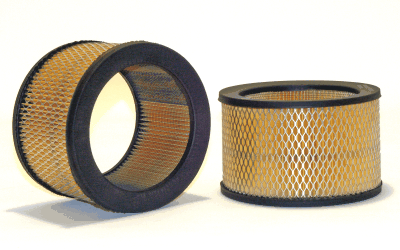

Intake Air Filter Element
