42147 | WIX | OFS # 97-22-0762

Lead Time: Please Call

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.00 IN (127.00 MM)

Outer Diameter, Bottom: 5.00 IN (127.00 MM)

Inner Diameter, Top: 3.56 IN (90.42 MM)

Inner Diameter, Bottom: 3.56 IN (90.42 MM)

Length: 3.69 IN (93.73 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: MOLDED

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.40 LB (1.54 KG)

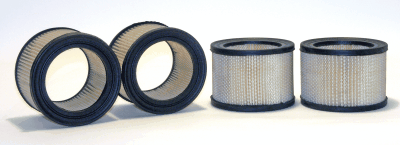

Intake Air Filter Element
