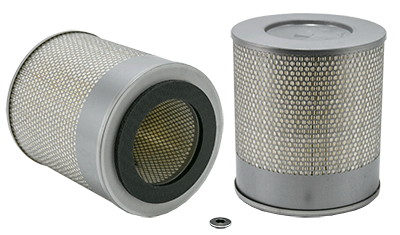

42108 | WIX | OFS # 97-22-0801

Lead Time: Please Call

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES VORTOX CO 79160 P/N VF120A

Dimensional Specifications
Outer Diameter, Top: 8.89 IN (225.81 MM)

Outer Diameter, Bottom: 8.88 IN (225.55 MM)

Inner Diameter, Top: 4.98 IN (126.49 MM)

Inner Diameter, Bottom: 0.44 IN (11.18 MM)

Length: 10.31 IN (261.87 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN / BOLT H

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.90 LB (1.77 KG)
