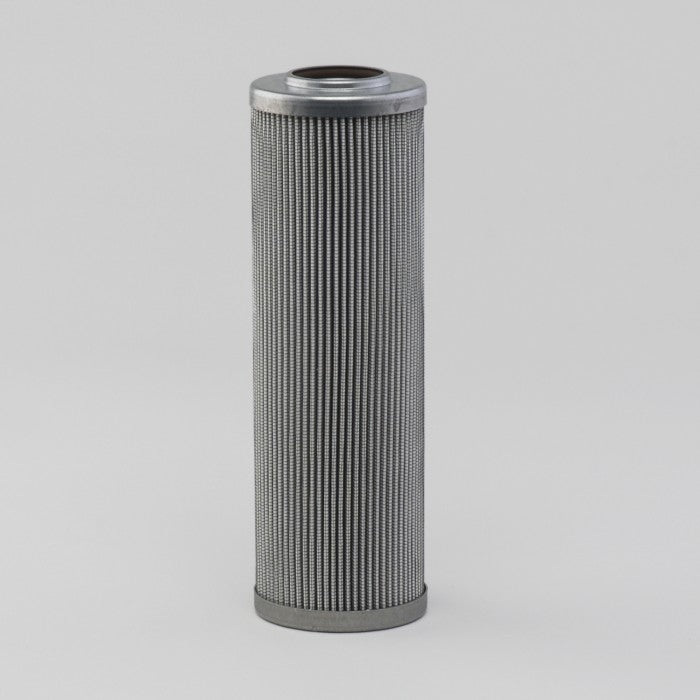

25DNZ10 | Schroeder | OFS # 97-01-3446
Pleated Microglass Element OFS # 97-05-3918
Performance Data
Micron Rating: 10.00 ABSOLUTE
Beta Rating: B10=200
Collapse Pressure Rating: 150 PSI
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Dimensional Specifications
Outer Diameter, Top: 3.10 IN (78.74 MM)
Outer Diameter, Bottom: 3.10 IN (78.74 MM)
Inner Diameter, Top: 1.60 IN (40.64 MM)
Inner Diameter, Bottom:
Length: 10.00 IN (254.00 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Type of Fiilter: PLEATED MICROGLASS ELEMENT
Brand: SCHROEDER
Type of Media: MICROGLASS
Filter Area: SQ. IN."
Plating: PLATED STEEL
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight:
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
