24849 | WIX | OFS # 97-25-0359

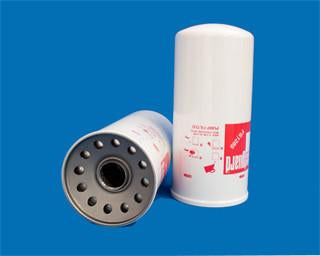

SPIN-ON ELEMENT Spin-On Element

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 30.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.00 IN (127.00 MM)

Outer Diameter, Bottom: 5.00 IN (127.00 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 11.00 IN (279.40 MM)

Thread: 1 1/2-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER/CHEM

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 19.50 LB (8.85 KG)
