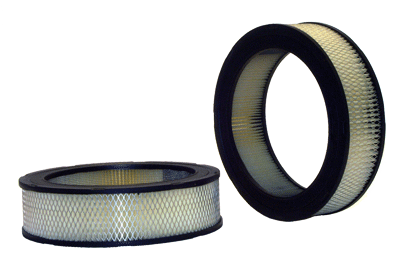

20 | WIX | OFS # 97-28-1791

• WIX 42020

Lead Time: Please Call

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 10.00 IN (254.00 MM)

Outer Diameter, Bottom: 10.00 IN (254.00 MM)

Inner Diameter, Top: 7.54 IN (191.52 MM)

Inner Diameter, Bottom: 7.54 IN (191.52 MM)

Length: 2.75 IN (69.85 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: PLASTISO

Type of Adhesive: PLASTISOL

Type of Endcap: MOLDED

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.40 LB (3.36 KG)

***Online Filter Supply, Requires A Minimum Order Amount Of $25.00 On All Orders***

*** All Of Online Filter Supply , Replacement Filters Meet Or Exceed The Overall Quaility Of The Original Equipment Manufacturer And Can Be Used As Direct Replacements***

Intake Air Filter Element
