19 | WIX | OFS # 97-25-0231

SPIN-ON ELEMENT Spin-On Element

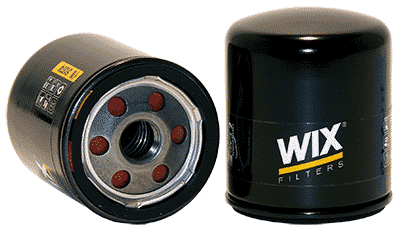

WIX 19 Is Obsolete And Replaced By WIX 51374.

Click Here To View WIX 51374

Lead Time: Usually Ships In 24-48 Hours

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.04 IN (77.22 MM)

Outer Diameter, Bottom: 3.04 IN (77.22 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.45 IN (87.63 MM)

Thread: 3/4-16 UNS2B

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.83 LB (0.38 KG)

Please Note That Online Filter Supply Requires A Minimum Order Amount Of $25.00.
