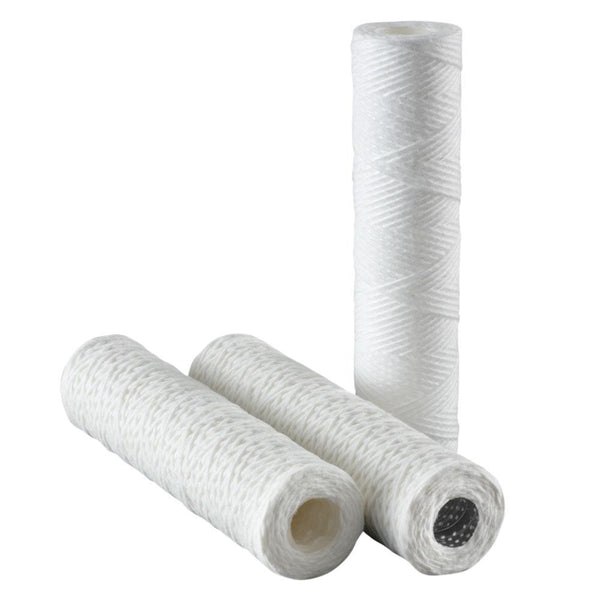

15R40G | Parker | String Wound Element | OFS # 97-37-6563

Performance Data
Micron Rating:  20.00

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  N/A

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.50 IN   (63.50 MM)

Outer Diameter, Bottom:  2.50 IN   (63.50 MM)

Inner Diameter, Top:  1.00 IN   (25.40 MM)

Inner Diameter, Bottom:  1.00 IN   (25.40 MM)

Length:  40.00 IN   (1,016.00 MM)

Thread:  N/A

Physical Specifications
Handle:  NONE

Seal Material:  N/A

Type of Adhesive:  N/A

Type of Endcap:  N/A

Center Tube:  304 STAINLESS

Type of Media:  FDA COTTON

Filter Area:  N/A

Plating:  N/A

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  15

Carton Weight:

Markets: Food and beverage
Brand: Parker domnick hunter
Function: Clarification/Prefiltration/Polishing
Media: Cotton FDA Grade
Filter: Construction Wound
Industry Standards: FDA
Flow Rate: 5 GPM per 10 inch
End Cap Material: No end cap
