Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 8.00 IN (203.20 MM)

Outer Diameter, Bottom: 8.00 IN (203.20 MM)

Inner Diameter, Top: 6.50 IN (165.10 MM)

Inner Diameter, Bottom: 6.50 IN (165.10 MM)

Length: 3.02 IN (76.71 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLASTISOL

Center Tube: WIRE MESH

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.60 LB (2.54 KG)

***Online Filter Supply, Requires A Minimum Order Amount Of $25.00 On All Orders***

*** All Of Online Filter Supply , Replacement Filters Meet Or Exceed The Overall Quaility Of The Original Equipment Manufacturer And Can Be Used As Direct Replacements***

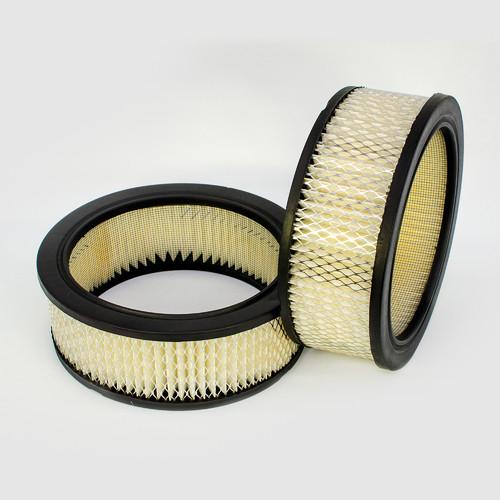

Intake Air Filter Element
