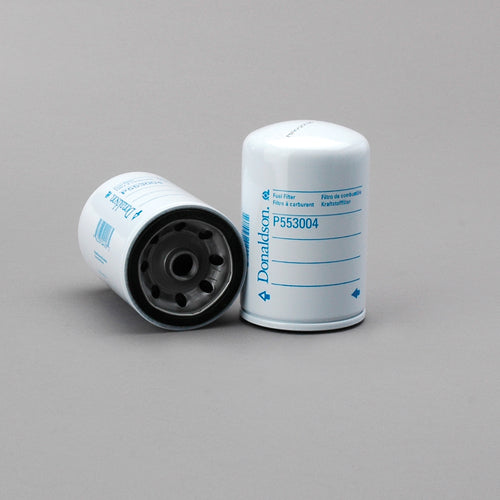

0117-4423 | Deutz | Fuel Filter OFS # 97-28-0246

Performance Data
Micron Rating:  4.00 NOMINAL

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.05 Inches (77.47 MM)

Outer Diameter, Bottom:  3.05 Inches (77.47 MM)

Length:  4.92 Inches (124.97 MM)

Thread Size:  M16X1.5-6HINT

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12 (Broken Cartons Are Available)

Carton Weight:  11.20 LB   (5.08 KG)

***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
