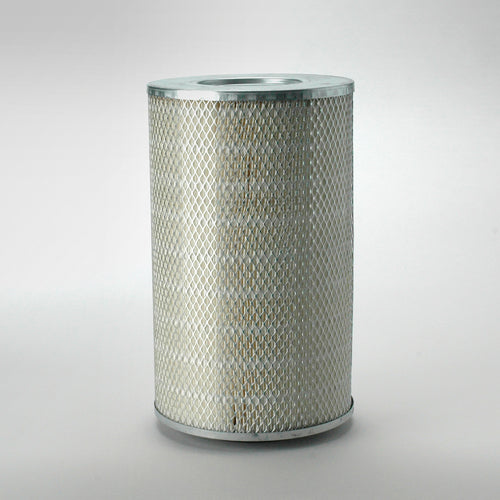

0004212748 | Renault |

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top: 8.94 Inches  (227.08 MM)

OuterDiameter, Bottom: 8.94 Inches (227.08 MM)

Inner Diameter, Top: 0.44 Inches (11.18 MM)

Inner Diameter, Bottom:  4.63 Inches (117.60 MM)

Length:  15.00 Inches (381.00 MM)

Thread:  NONE

Physical Specifications

Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

POLYVINYLCHLORIDE

Type of Endcap:  PLATED STEEL

Center Tube:  EXPANDED METAL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration : Single with bolt hole

Packaging Specifications
Number per Carton:  1

Carton Weight:  7.00 Lbs (3.18 KG)
