5098331096 - TEXTRON   - Online Filter Supply Replacement Part # 97-25-0353

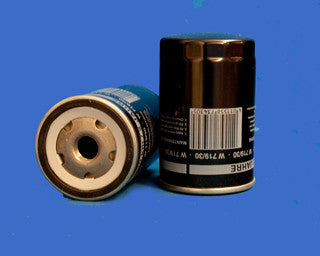

***Image may vary***

5098331096 - TEXTRON - OFS # 97-25-0353

  • $8.88


AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 30 PSID BY-PASS VALVE



Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)

Outer Diameter, Bottom: 3.05 IN (77.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 4.57 IN (116.08 MM)

Thread: 3/4-16 UNF2B



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 11.00 LB (4.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
