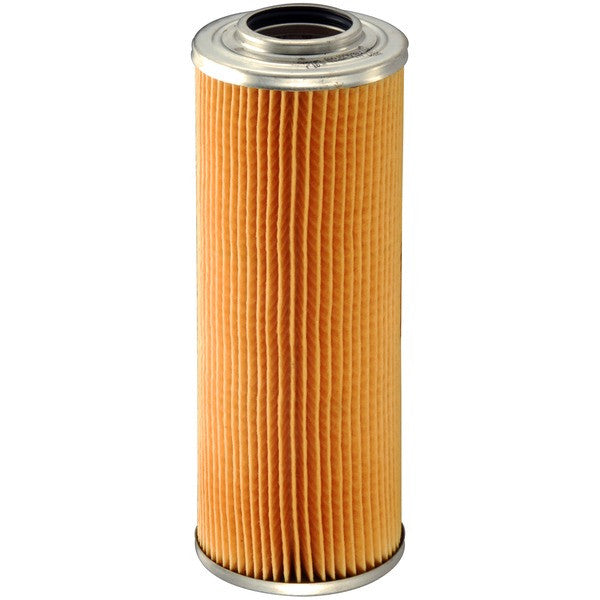

R2344| Ryco | Pleated Paper Element OFS # 97-01-0936

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  40.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.61 IN   (66.29 MM)

Outer Diameter, Bottom:  2.61 IN   (66.29 MM)

Inner Diameter, Top:  1.22 IN   (30.99 MM)

Inner Diameter, Bottom:

Length:  7.21 IN   (183.13 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  0.48 LB   (0.22 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
