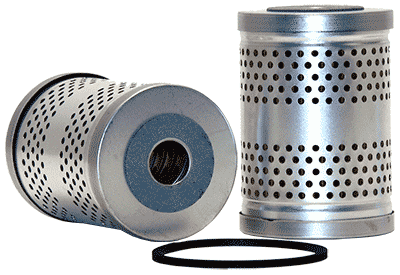

R2220P| Ryco | Pleated Paper Element | OFS # 97-01-0838

PLEATED PAPER ELEMENT

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.88 IN   (73.15 MM)

Outer Diameter, Bottom:  2.88 IN   (73.15 MM)

Inner Diameter, Top:  0.81 IN   (20.57 MM)

Inner Diameter, Bottom:  0.81 IN   (20.57 MM)

Length:  4.19 IN   (106.43 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  4.00 LB   (1.81 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
