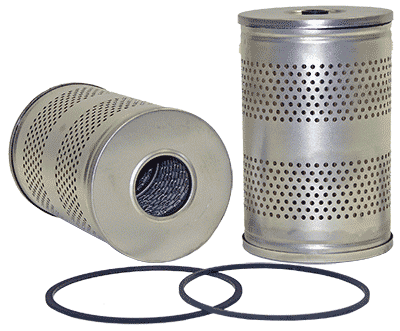

R2142P| Ryco | Pleated Paper Element | OFS # 97-01-0915
Performance Data
Micron Rating: 0.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.52 IN (114.81 MM)
Outer Diameter, Bottom: 4.52 IN (114.81 MM)
Inner Diameter, Top: 1.77 IN (44.96 MM)
Inner Diameter, Bottom: 0.88 IN (22.35 MM)
Length: 7.00 IN (177.80 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN / BOLT H
Packaging Specifications
Number per Carton: 1
Carton Weight: 13.50 LB (6.12 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
